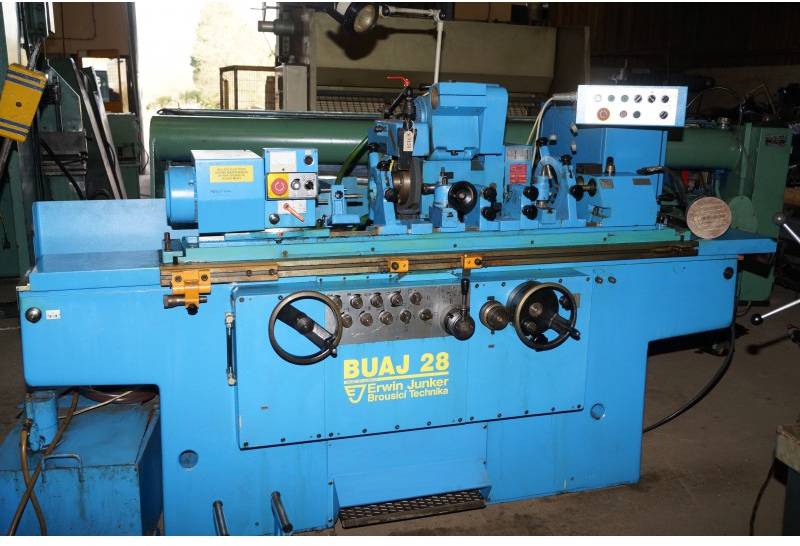

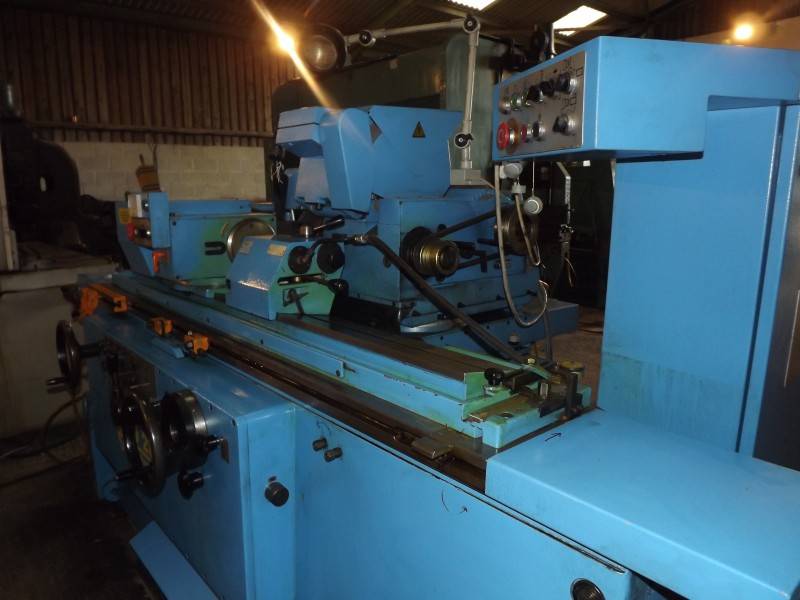

USED Erwin Junker BUAJ28

Grinder - Universal with Internal

£12,500.00

Stock No. 1515007859U

Machine Specifications

Grinding length between Centres	1000mm
Max Swing	280mm
Table Swivel Angle	7 - 30'
Range of workhead speeds	21 - 750rpm
workhead swivel angle	90 -30
Standard grinding wheel	400 x 40 x 127mm
Wheelhead speeds	2040/2560rpm
Wheelhead Motor	4Kw
Wheelhead swivel angle	45
Cross traverse of wheelhead	265mm
Tailstock Taper	4MT
Tailstock quill travel	25mm
Approx weight	2450kg
Accessories	Internal grinding attachment
	Mag Chuck
	2 off three point steadies
	2 off two point steadies
	Table mounted dresser
	Radius dressing attachment
	Side and angular dressing attachment
	Lighting
	Coolant system
	Guarding
