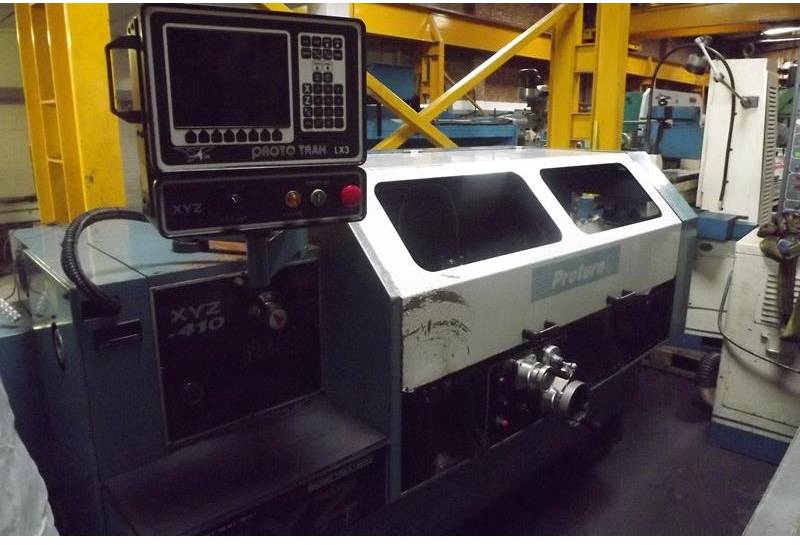

USED XYZ Proturn 410
Lathe - CNC / Manual Electronic Teach
£9,500.00
Stock No. 2015607325U
Machine Specifications
| Toolpost | QCTP |
| Chuck | 10", 3 jaw |
| Number Of Controlled Axis | 2 |
| Powered Tailstock | No |
| Main Drive Power (KW/V/Hz) | 7.5kw / 415v |
| Spindle Bore (mm) | 80 |
| Maximum Swing | 470mm |
| Control Type | Prototrak LX3 |
| Turning Diameter (mm) | 410mm |
| Turning Length (mm) | 1250mm |
| Spindle Turning Speed Range | 50-2300 rpm |
| Swing over cross slide (mm) | 290 |
| Swing over saddle (mm) | 470 |
| Swing in gap (mm) | 730 |
Machine Documents
| Product Specifications PDF (Printable) |
